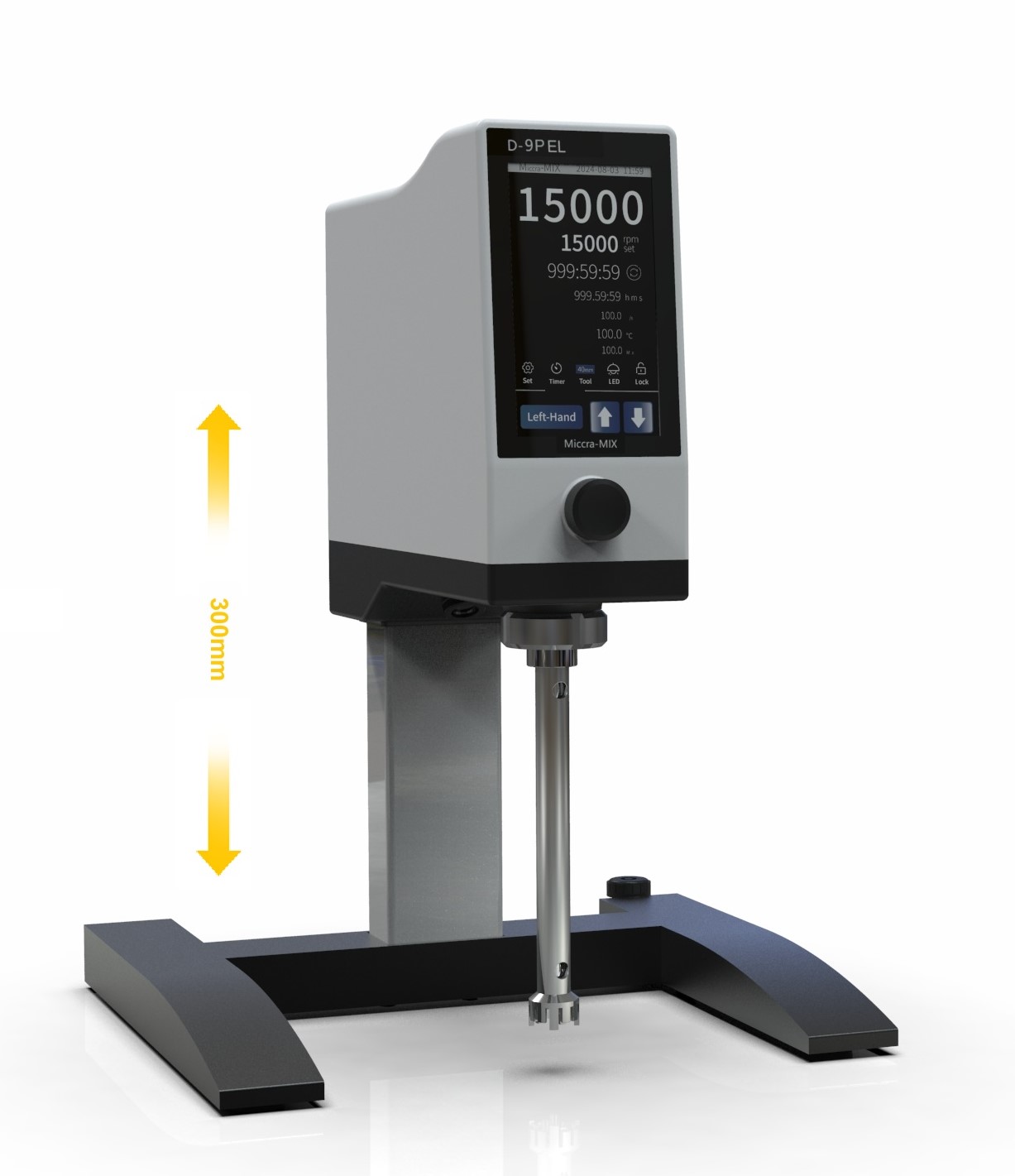

MiniBatch D-9P EL
The new generation of laboratory dispersers of MICCRA.
MiniBatch masters your daily dispersion applications in the twinkling of an eye.
The powerful drive covers a volume range up to 20l and a speed range from 1500 to 15000rpm. Powerful, robust and digital with electrical stand. This is the proven gene that we have also inoculated in this new product group.
Technical Data
Type | MiniBatch D-9P EL |
|---|---|
Power Input/Output | 950W / 760W |
Power/Frequency (V/Hz) | 230V AC - 50/60 Hz |
Volume range (H2O) | up to 20 L |
Motor type | BLDC Motor |
Display | 3.5'' TFT |
Speed range | 1500 - 15.000 rpm |
Speed adjustment | via rotary knob |
Max. Viscosity | 8,000 mPas |
Noise level | 55 dB(A) |
Protection level | IP 30 |
Max. Torque | 55 Ncm |
6-step Programming | YES |
Permissible on time | 100% |
Timer | 999h59min59sec |
Temp. display and setting | Yes, can set up Max. Temp. limit of the medium (with optional sensor) ） |
WIFI control | YES |
Weight | 4.2 kg 4.2 |
Dimensions | 420 x 400 x 560-860 mm (with EL stand) |
