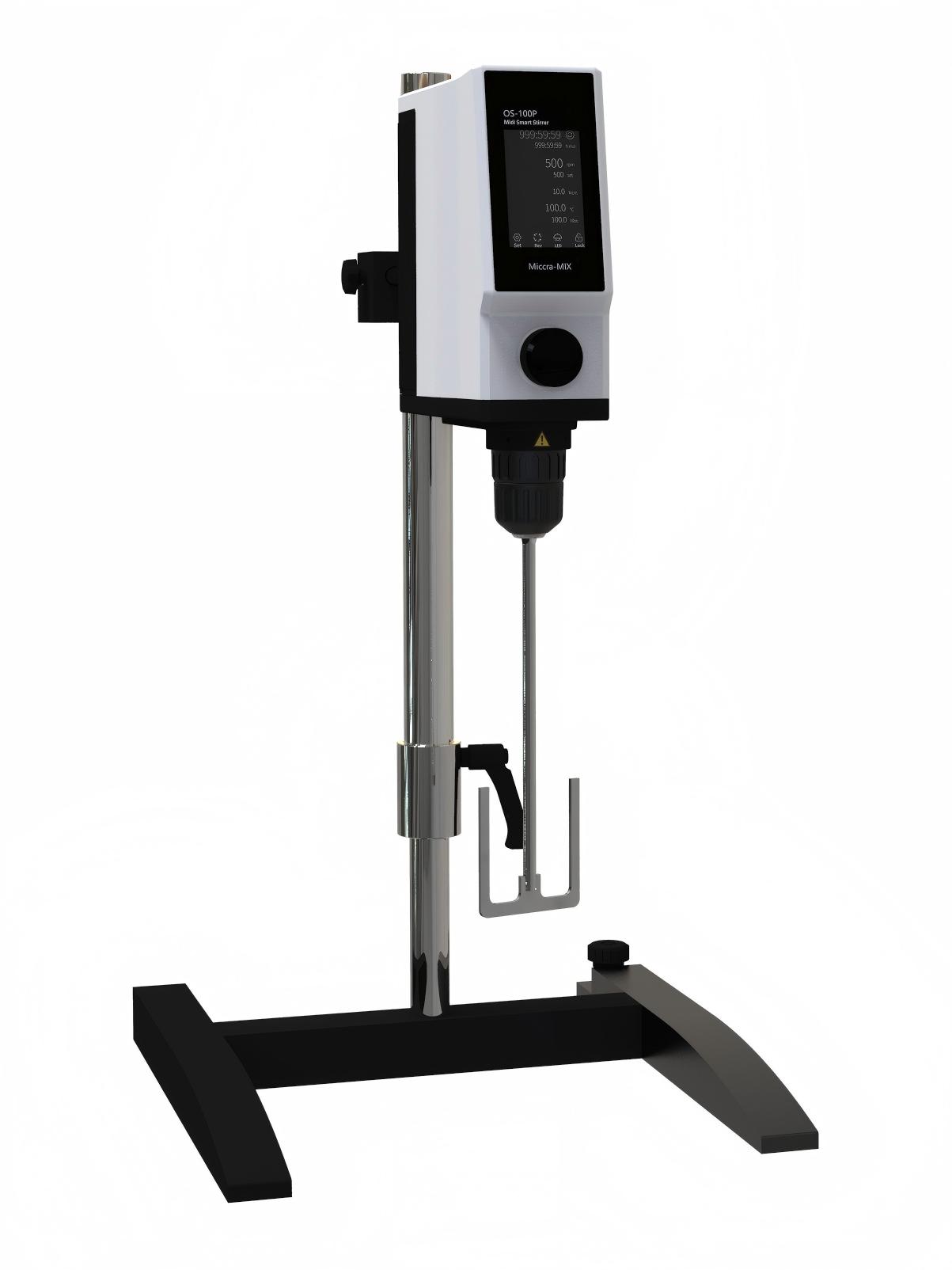

MiniStirr OS-100P
The new generation of laboratory stirrers of MICCRA.
MiniStirr masters your daily stirring applications in the twinkling of an eye.
The powerful drive covers a volume range up to 100l and a viscosity range up to 100.000 mPas. Small, powerful and digital. This is the proven gene that we have also inoculated in this new product group.
Technical Data
| Type | MiniStirr OS-100P |
|---|---|
| Power Input/Output | 180W / 144W |
| Power/Frequency (V/Hz) | 230V AC - 50/60 Hz |
| Volume range (H2O) | up to 100 L |
| Motor type | BLDC Motor |
Display | 3.5'' TFT |
| Speed range | 6 - 700 rpm |
| Speed adjustment | via rotary knob |
| TMax. Viscosity | 100,000 mPas |
| Noise level | 30 dB(A) |
| Protection level | IP 42 |
| Max. Torque | 300 Ncm |
| Stirring element fastening | Chuck |
| Permissible on time | 100% |
| Chuck holding range | 0.5 - 10 mm |
| Permissible ambient temp. | 5 - 45° C |
| Permissible ambient humid. | up to 80 % |
| Weight | 4.5 kg |
| Dimensions | 92 x 219 x 279 mm |
