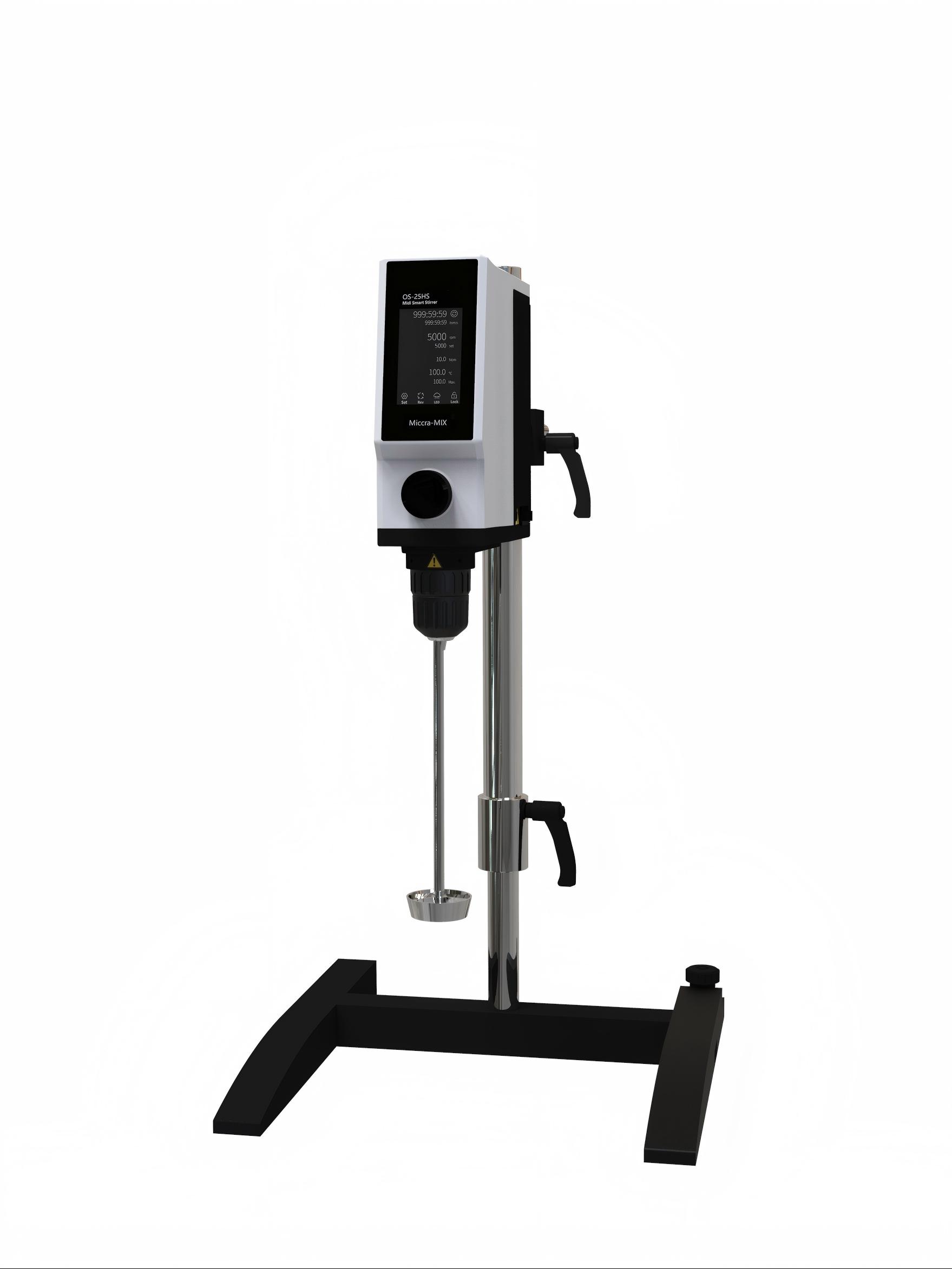

MyStirr OS-40HS
The new laboratory agitator generation from MICCRA.
MiniStirr masters your daily stirring applications in no time at all. Three drives of different strengths cover a volume range up to 40l and a viscosity range up to 30,000 cps. Small, powerful and digital. These are the proven genes that we have also inoculated into this new product group.
Technical Data
| Type | MiniStirr OS-40HS |
|---|---|
| Power Input/Output | 300W / 240W |
| Power/Frequency (V/Hz) | 230V AC - 50/60 Hz |
| Volume range (H2O) | up to 40 L |
| Motor type | BLDC Motor |
Display | LED TFT |
| Speed range | 300 - 6.000 rpm |
| Speed adjustment | via rotary knob |
| TMax. Viscosity | 100,000 mPas |
| Noise level | 30 dB(A) |
| Protection level | IP 42 |
| Max. Torque | 200 Ncm |
| Stirring element fastening | Chuck |
| Permissible on time | 100% |
| Chuck holding range | 0.5 - 10 mm |
| Permissible ambient temp. | 5 - 45° C |
| Permissible ambient humid. | up to 80 % |
| Weight | 5.0 kg |
| Dimensions | 92 x 179 x 183 mm |
